技术参数： |
接线方式：红：电源+，黑：电源-，绿：信号+，白：信号- | ||
|
额定负荷 |
2, 3, 5, 10, 15, 20, 25, 35, 50, 75klb |
输出温度影响 |
≥5000MΩ |
|
精度等级 |
2.0 mv/V±5% |
零点温度影响 |
-10~+40℃ |
|
灵敏度 |
3.0±0.003 mv/V |
输入抗阻 |
-30~+70℃ |
|
线性误差 |
±0.05% F.S |
输出抗阻 |
150%F.S |
|
滞后误差 |
±0.05% F.S |
绝缘抗阻 |
200%F.S |
|
蠕变(30分钟) |
±0.02% F.S |
推荐工作电压 |
10~12VDC |
|
零点温度影响 |
±0.02% F.S/10℃ |
最大工作电压 |
IP67 |
|
灵敏度温度影响 |
±0.02% F.S/10℃ |
工作温度范围 |
-20~60℃ |
|
输入抗阻 |
750±10 Ω |
材质 |
铝合金 |
|
输出抗阻 |
702±5 Ω |
电缆：6m(2~5klb),10m(10~35klb),16m(50~75klb) | |

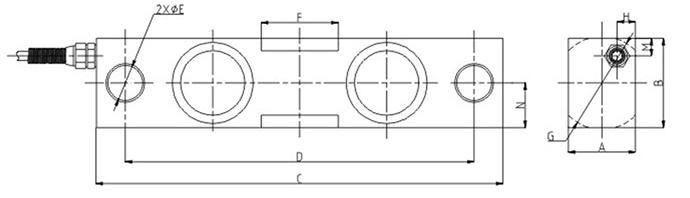

尺寸图：
尺寸参数：
|
额定荷载 |
A |
B |
C |
D |
E |
F |
G |
H |
|
2~5klb |
31 |
31 |
190.5 |
159.1 |
12.7 |
30.5 |
31.5 |
14.2 |
|
10~35klb |
36.6 |
48.5 |
222 |
190.5 |
20.6 |
50 |
50.6 |
B/2 |
|
50~75klb |
62 |
74.7 |
342.9 |
292.1 |
33.5 |
82.6 |
75.9 |
B/2 |
 |
||
|
||
